Search architectures and bill of materials for HVAC machines
Schneider Electric's smart and environmentally friendly HVAC technology helps machine builders balance costs, enhance building comfort while producing the lowest emission output.
Click the links below to start exploring
The perfect fit for compact and cost-effective AHU machines. Improve performance and scalability through wide selection of I/O expansions.
The perfect fit for HVAC machines joining competitiveness with reliability, efficiency and sustainability.
Best fit for simple machines with good visualization, connectivity and cybersecurity. It allows multiple screen and remote maintenance.
Compact, cost-attractive, easy to install and maintain energy metering offer for commercial building and industry.

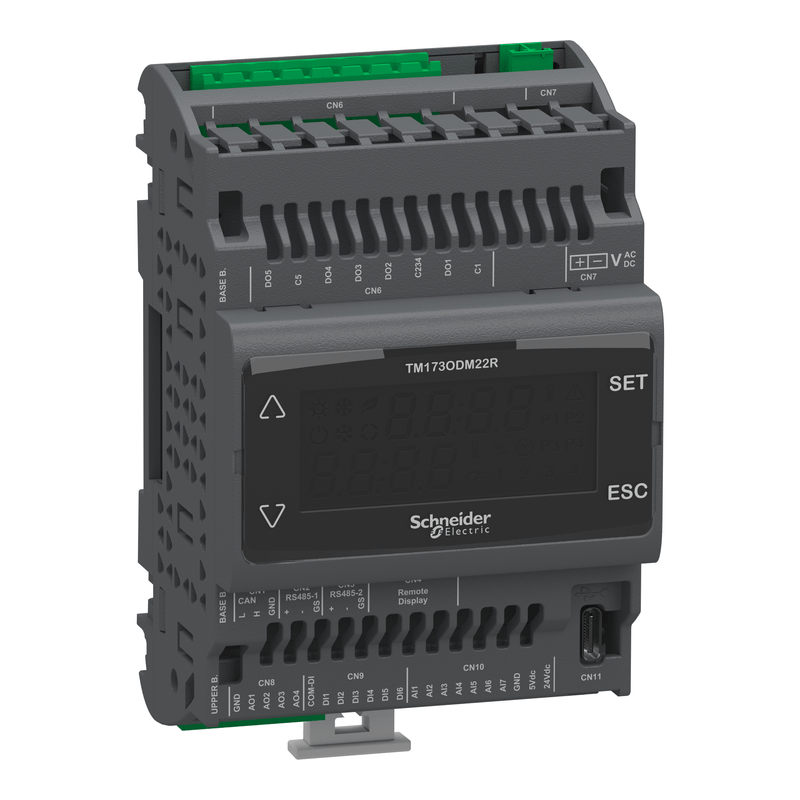

Cost effective and scalable controllers, features and functions embedded for any type of machines. Multiple BMS connectivity and web server, programmable touch screen.
Its economical design is limited to a simple set of components:

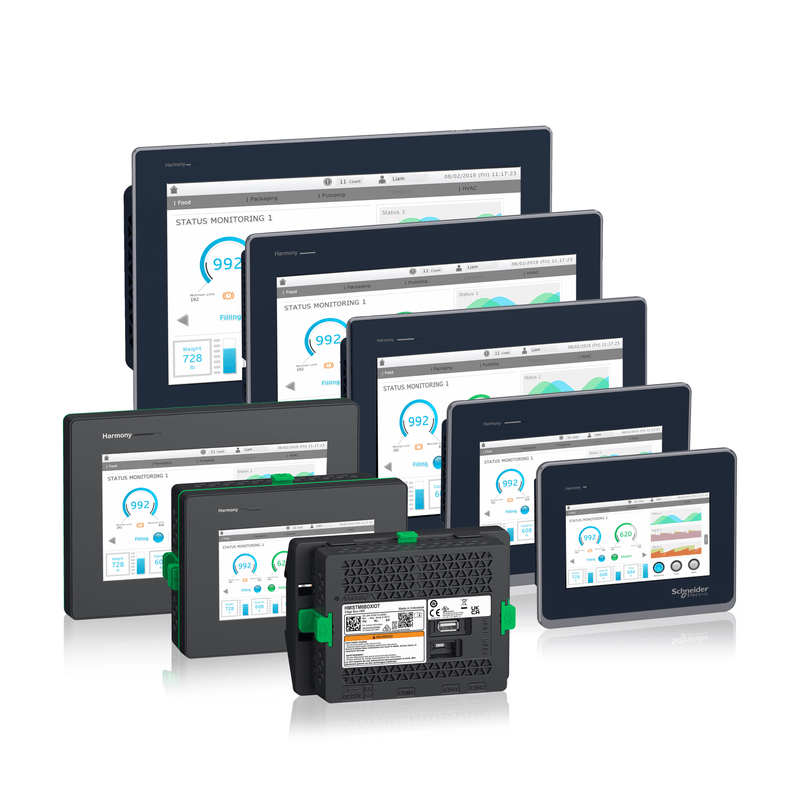

ST6 Touch Screen
M1730 Logic Controller
Compact Circuit Breaker
TeSys Deca Contactor
Multi9 Circuit Breaker
XALK Control Station
TeSys Deca Motor Circuit Breaker
Acti9 - iEM3000 Energy Meter
Push buttons

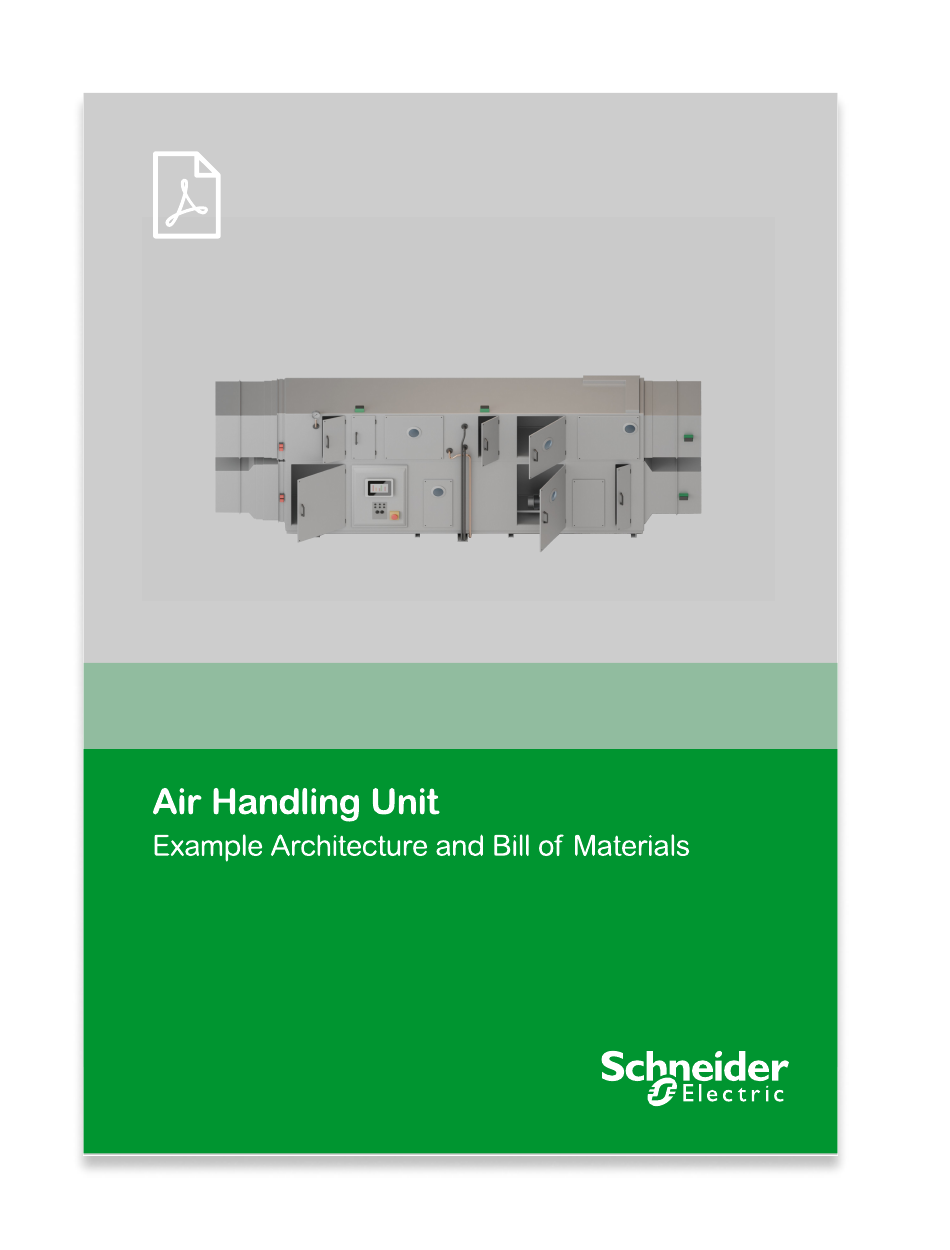

Case study architecture and complete bill of materials

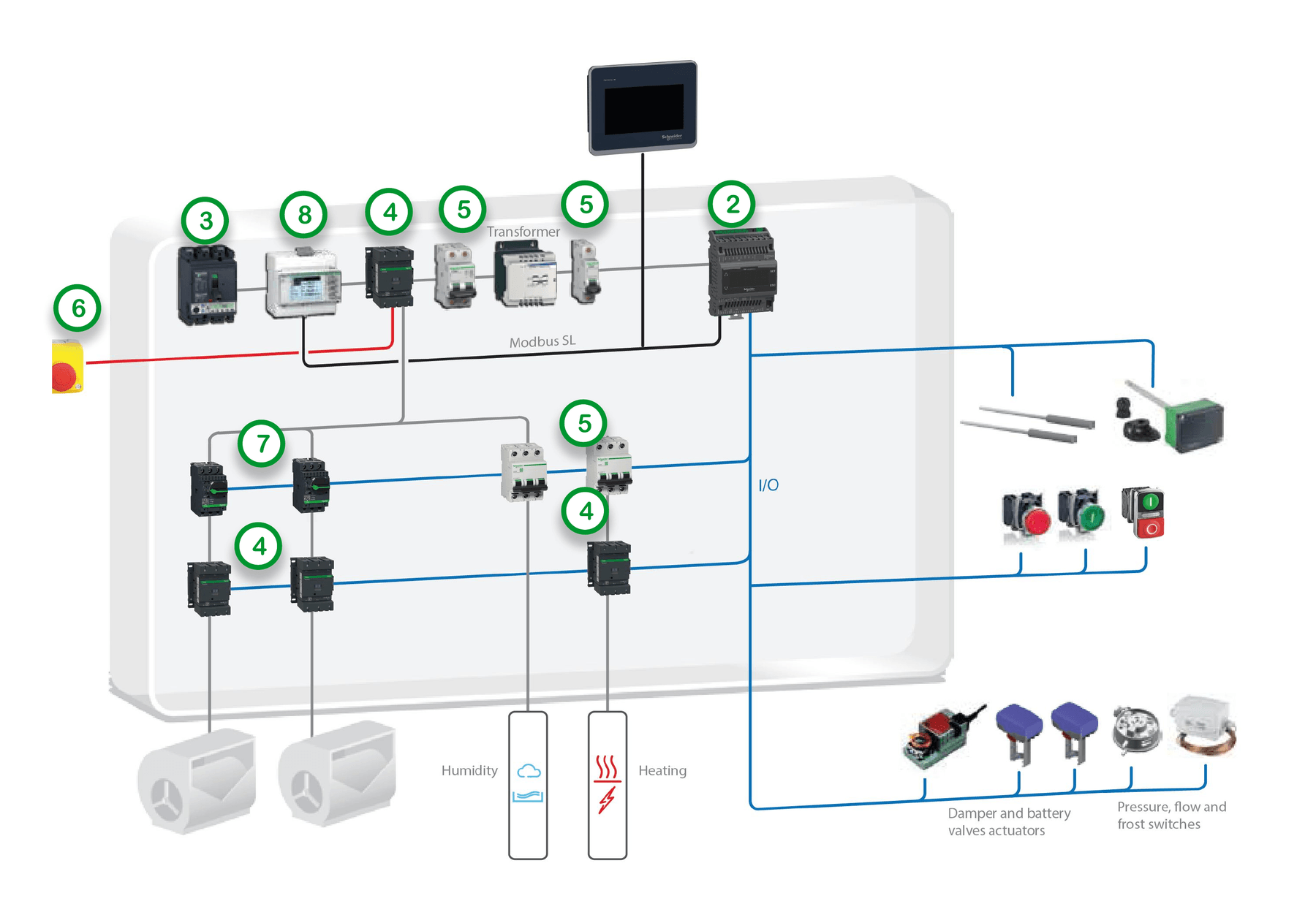

An economic, scalable and robust solution controlled by an HVAC optimized logic controller associated with real time measurement power meter. Air regulation and circulation is managed with simple and optimized drives offering best-in-class motor control and protection and uses simple electromechanical components for heating and humidity control. It is suitable for offices, industrial buildings, and other applications like clean rooms or indoor farming.
These machines transform energy from air, ground, or water respectively to heat or cold. They improve air quality by introducing fresh air into space and sending stale air outside.
It gives the ability to control and optimize operational efficiency, safety, reliability, and motor lifetime of the main components used in the refrigeration cycle such as compressor / Condenser / Expansion Valve / Evaporator or cooling tower if Water-cooled. Heat Pump has in addition 4 ways reversing valve.
ST6 Touch Screen
M1730 Logic Controller

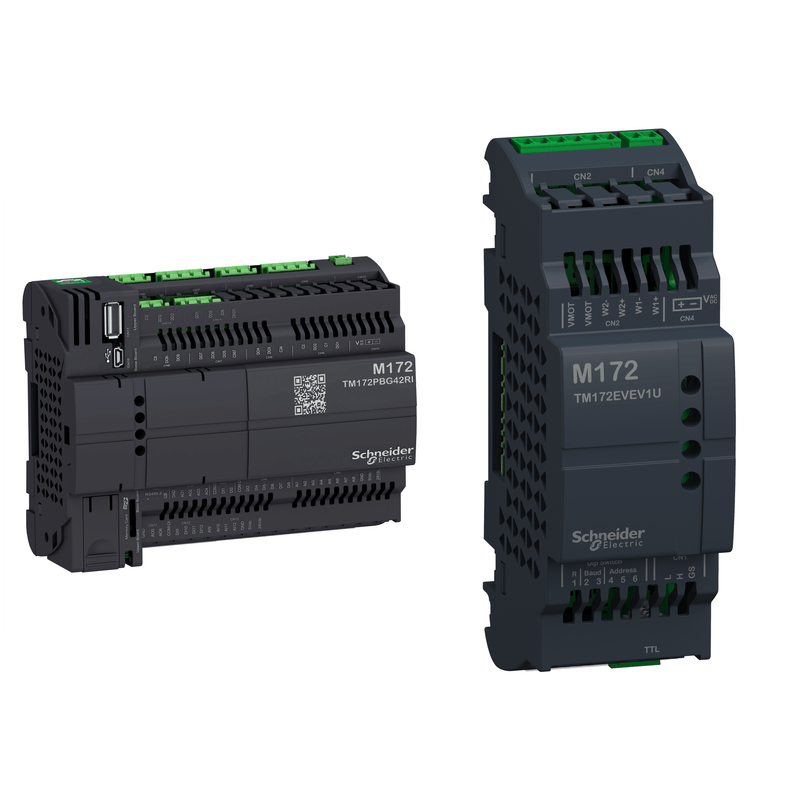

M172 EEV driver
NSX Circuit breaker
TeSys Contactors
Multi9 Miniature Circuit Breaker
XALK Control Station
TeSys Deca Motor Circuit Breaker
ATH200/600 HVAC speed drive
iEM3000 Energy Meter
Temperature and humidity sensors
Harmony Push Buttons

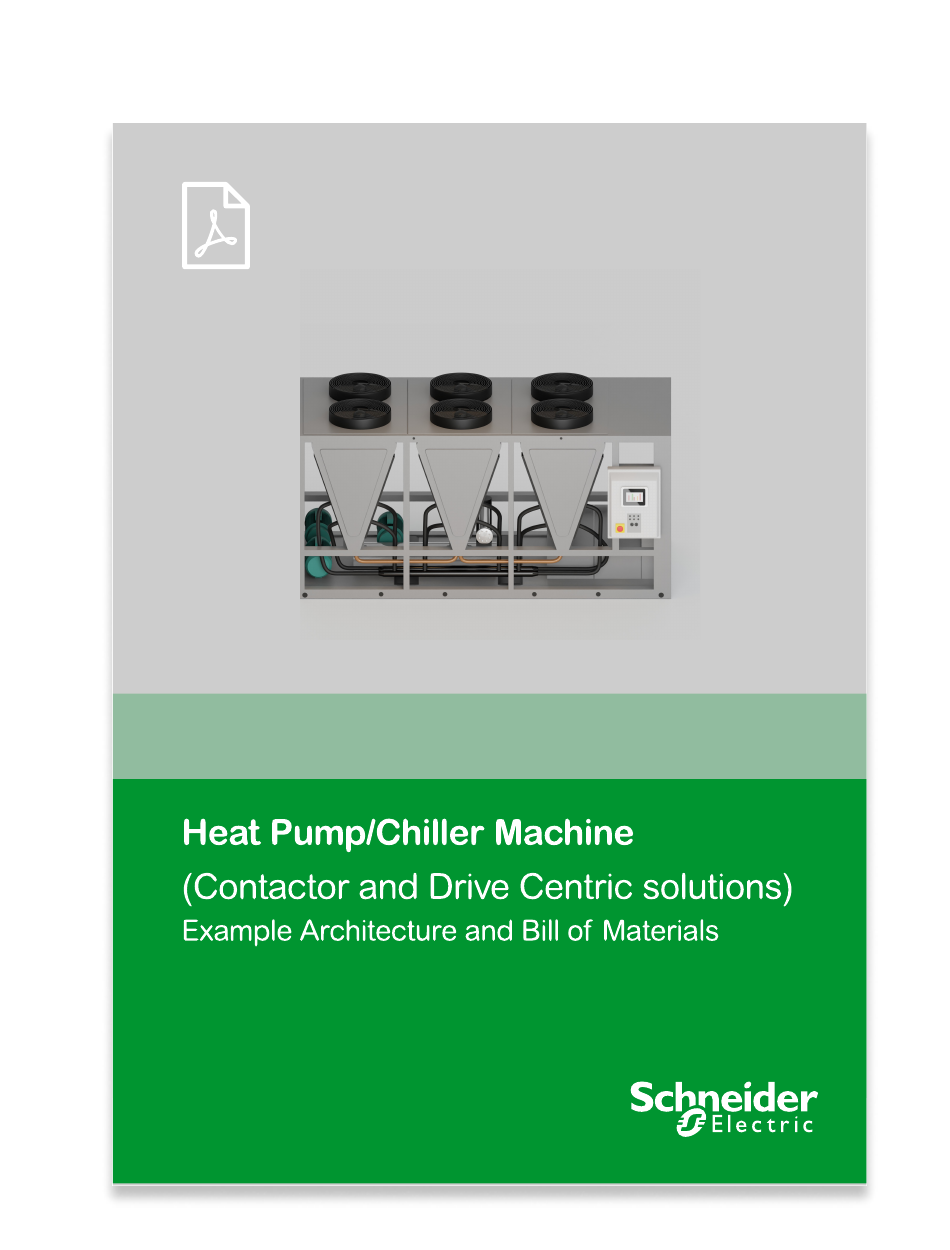

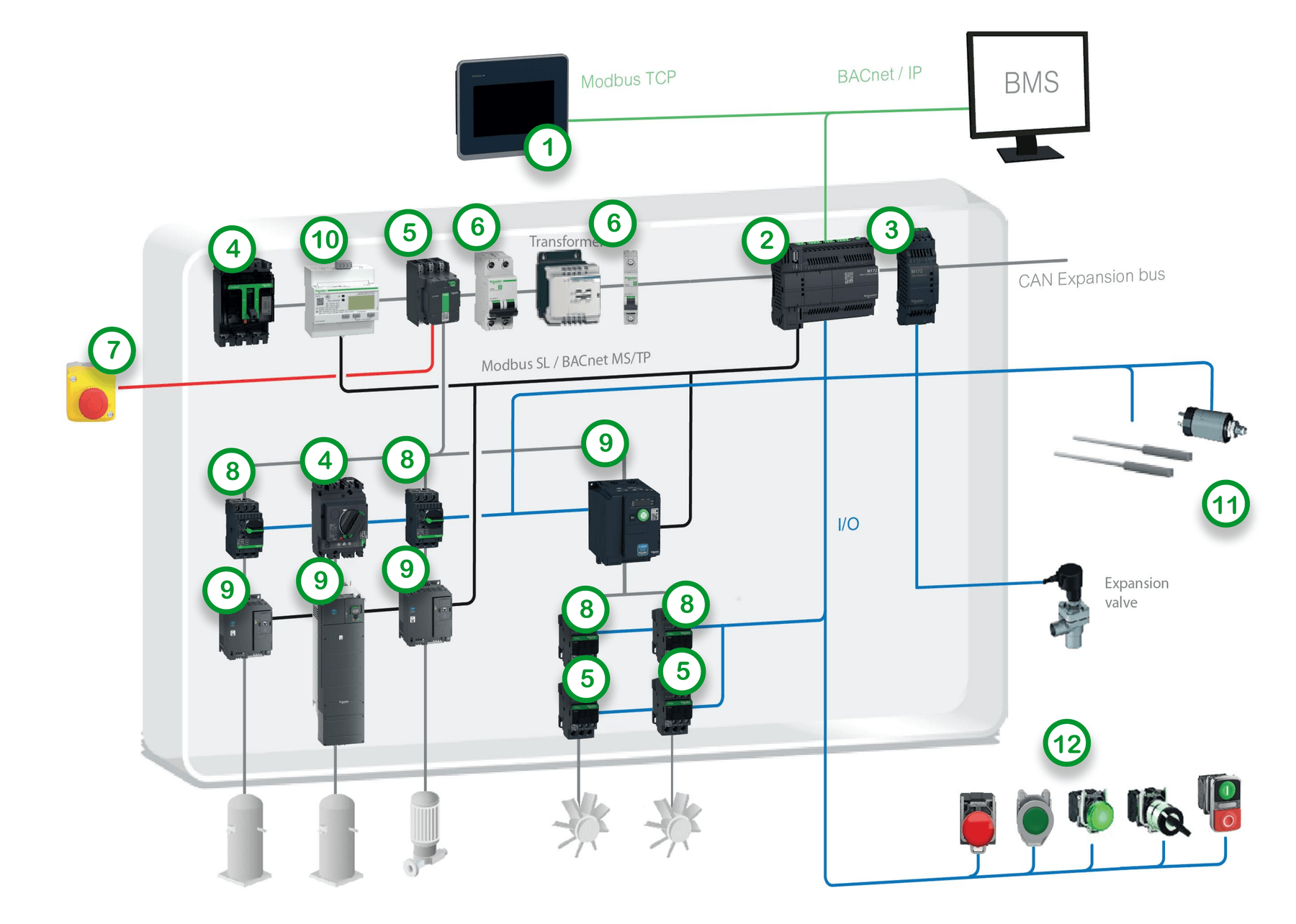

Case study architecture and complete bill of materials

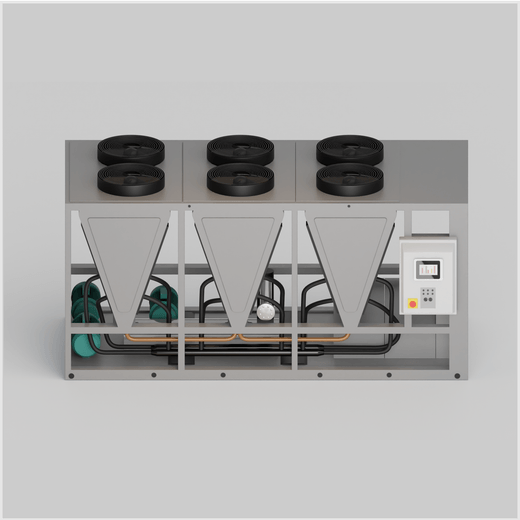

Chillers are the most common machine in HVAC and, with heat pumps, are using the classical refrigeration cycle to transform energy from air, ground or water to produce cold or heat respectively and can be air-cooled or water-cooled. The design is based upon an economic, scalable and robust architecture using a simple set of optimized, fit for purpose HVAC parts.
